PTFE Film Adhesive Tape
PTFE Wear Resistant Tape for Presser Feet of Sewing Machine

0.18MM AND 0.25MM used under presser feet for sewing machine. High strength film and Strong silicone adhesive. White and Gray Color available, to replace ASF-110FR or 903UL.

  • FEATURES
  • MAIN TECHNICAL PARAMETER


PTFE film with single side silicone adhesive, no residue after removal.


 0.18MM AND 0.25MM used under presser feet for sewing machine.

High strength film and Strong silicone adhesive.

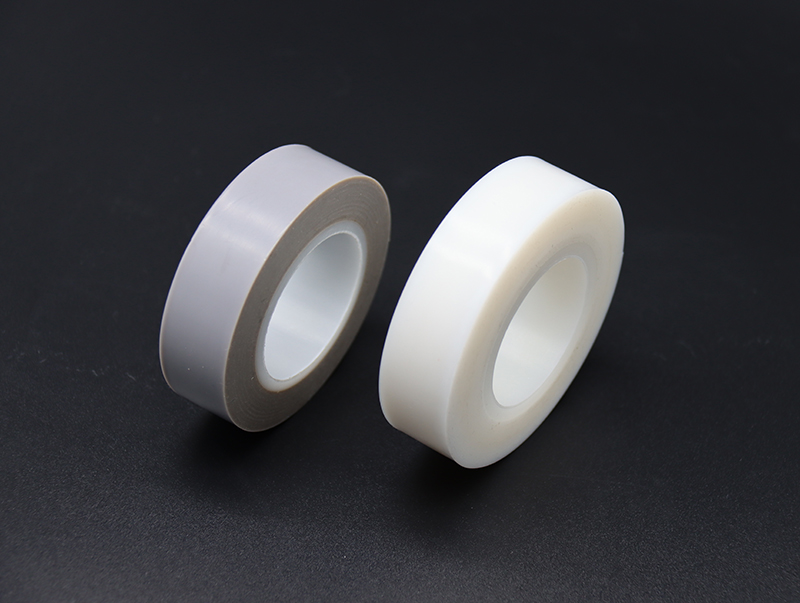

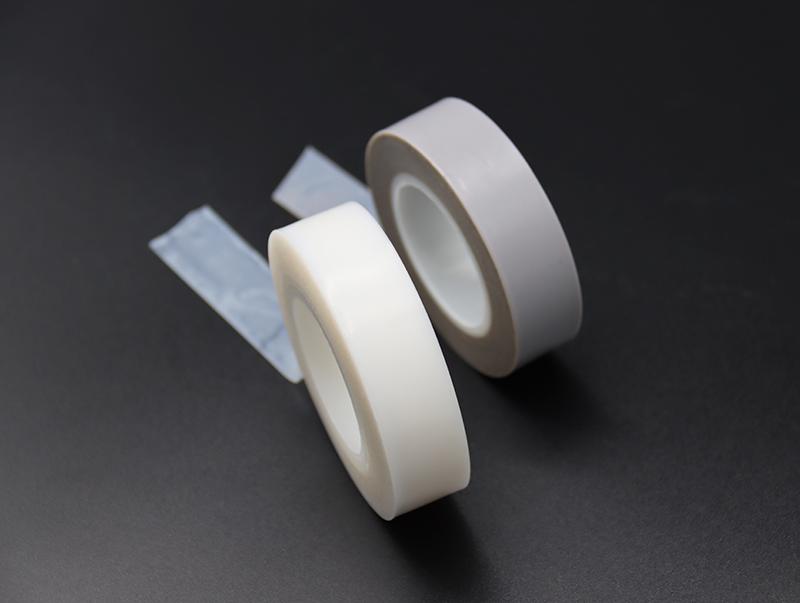

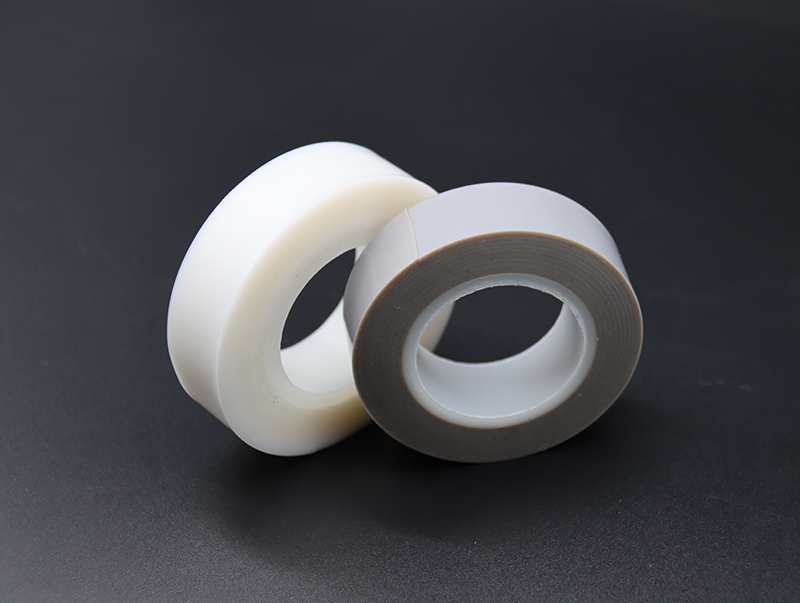

White and Gray Color available, to replace ASF-110FR or 903UL.



Key Characteristics

  • Non-stick PTFE film provides a slippery and anti-friction surface.

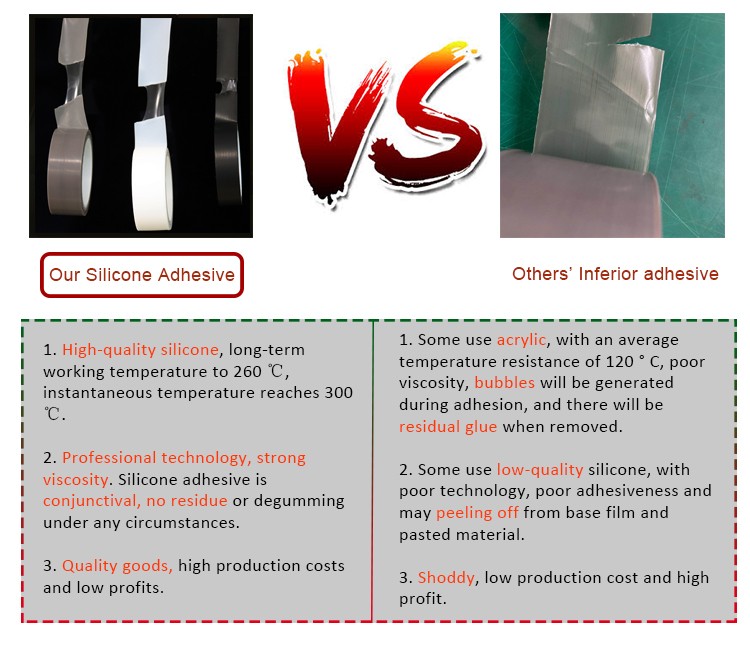

  • Silicone adhesive provides clean removal with no residue.

  • Outstanding chemical resistance and inertness

  • High temperature resistance to 260℃

  • Dielectric insulation properties

  • Good wear resistance

  • Superior flame resistance


Specifications

Adhesive: Silicone

Backing: PTFE film

Thickness: 0.05mm, 0.08mm, 0.13mm, 0.18mm, 0.25mm (Customized)

Width: Max 300mm

Continuous Working Temperature: -70°C to 260°C


Applications

  • Providing excellent mold release in composite bonding

  • Wrapping and insulation connection of high temp. and high voltage cables

  • Wrapping web rollers to reduce friction

  • Covering web former edges to minimize friction during folding

  • Noise reduction of parts where surfaces rub together

  • Increasing wear life of parts
