PTFE Film Adhesive Tape

PTFE Film Tape with Silicone Adhesive - White

PTFE (Teflon) Film Tape uses high performance polytetrafluoroethylene (PTFE) film made from 100% virgin PTFE resin as base material. This tape offers an extremely low coefficient of friction, in combination with a pressure sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications. Tape creates easy to release surface for ink and adhesive on rollers, plates, and belts.

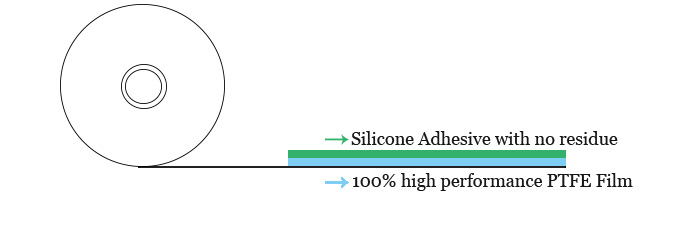

PTFE film with single side silicone adhesive, no residue after removal.

1. Good for outdoor use. No change under sun.

2. 0.18MM AND 0.25MM used under presser feet for sewing machine.

Key Characteristics

  • Non-stick PTFE film provides a slippery and anti-friction surface.

  • Silicone adhesive provides clean removal with no residue.

  • Outstanding chemical resistance and inertness

  • High temperature resistance to 260℃

  • Dielectric insulation properties

  • Good wear resistance

  • Superior flame resistance


Adhesive: Silicone

Backing: PTFE film

Thickness: 0.05mm, 0.08mm, 0.13mm, 0.18mm, 0.25mm (Customized)

Width: Max 500mm

Continuous Working Temperature: -70°C to 260°C


  • Providing excellent mold release in composite bonding

  • Wrapping and insulation connection of high temp. and high voltage cables

  • Wrapping web rollers to reduce friction

  • Covering web former edges to minimize friction during folding

  • Noise reduction of parts where surfaces rub together

  • Increasing wear life of parts

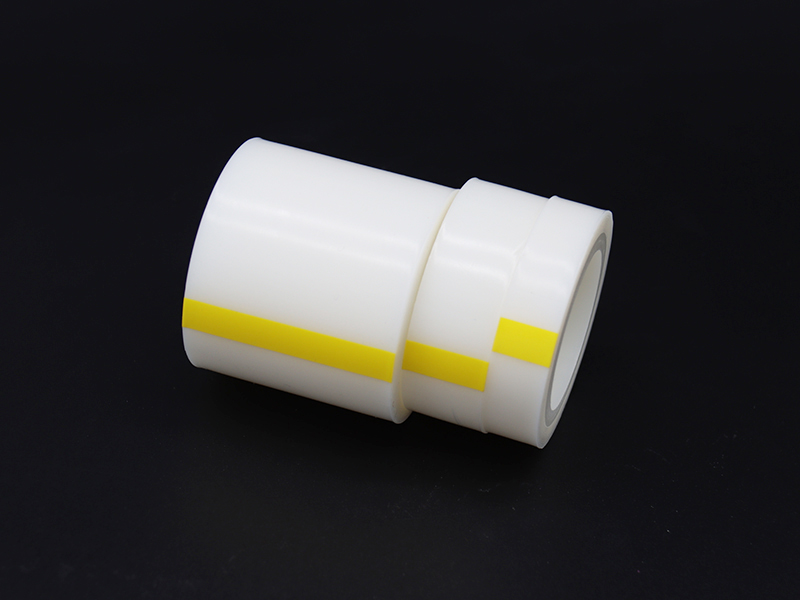

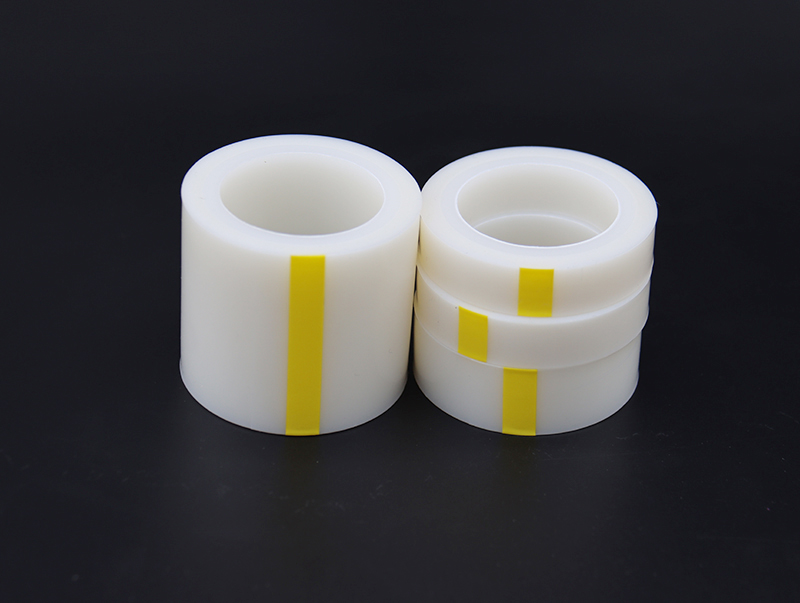

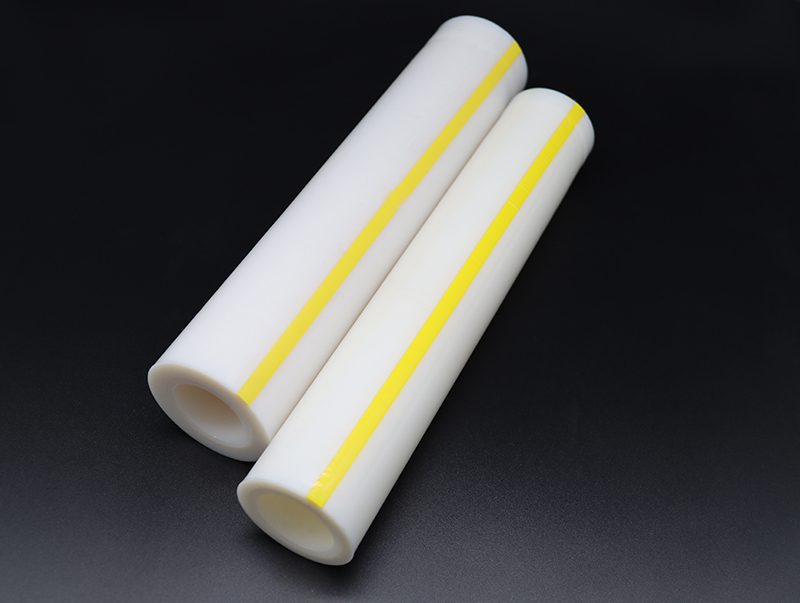

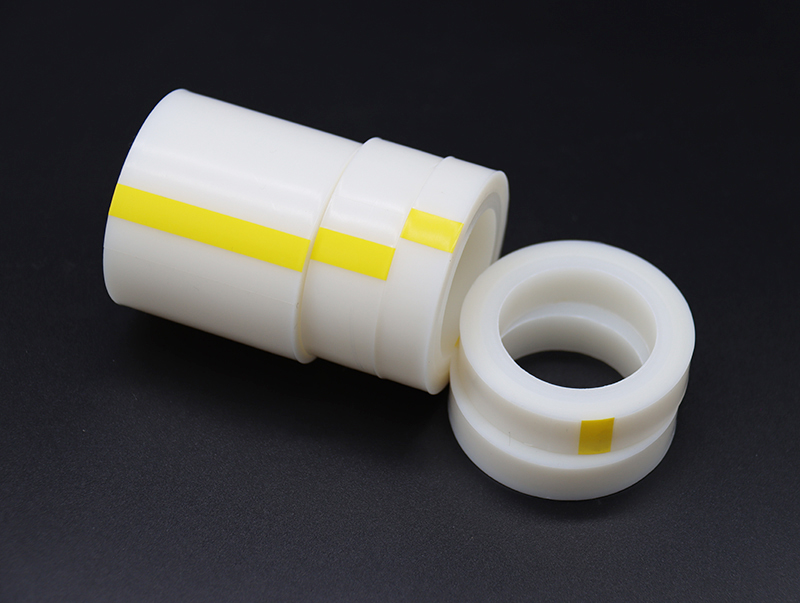

ptfe adhesive.jpg

Key Characteristics

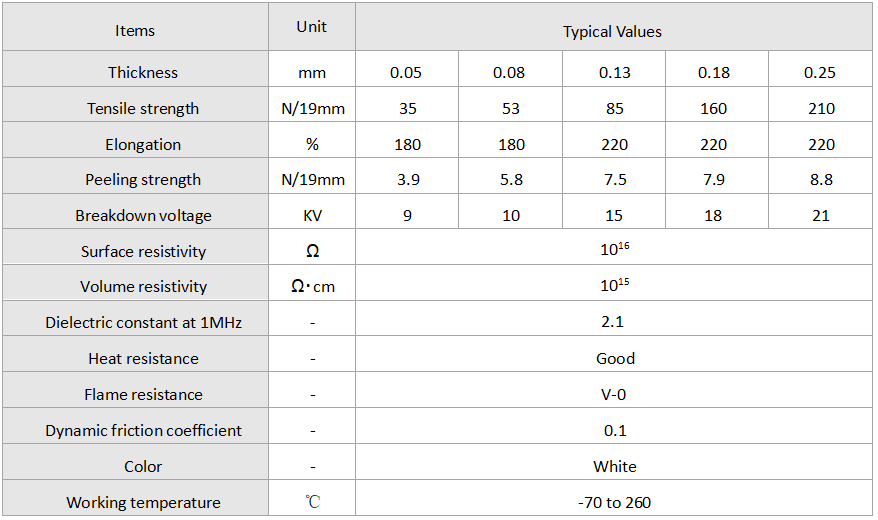

adhesive ptfe.png
