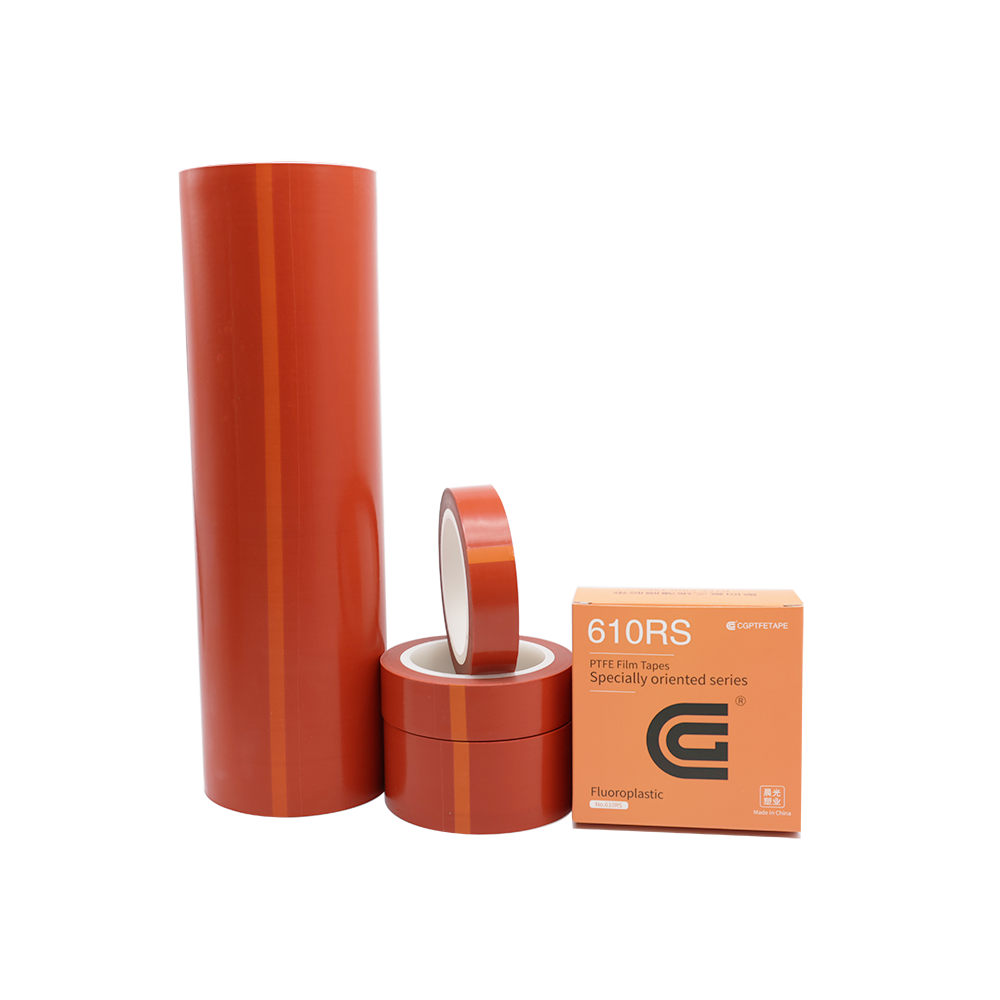

Specially Oriented High-strength PTFE Film Adhesive Tape

High strength PTFE Adhesive Film Tape, especially used for laminations

Key Characteristics

• Non-stick PTFE film provides a slippery and anti-friction surface.

• Silicone adhesive provides clean removal with no residue.

• Superior tensile strength.

• Outstanding chemical resistance and inertness

• High temperature resistance to 260℃

• Dielectric insulation properties

• Good wear resistance

• Superior flame resistance

Specifications

Adhesive: Silicone

Base: Single Surface Specially Oriented High-strength PTFE Film

Thickness: 0.1mm

Width: 350mm

Continuous Working Temperature: -70°C to 260°C

Applications

• For roll wrapping of polyethylene laminators (Suitable for laminations made in a relatively short amount of time or for thin laminates as changing tapes is simple).

• For endless belts of polyethylene laminators (Time for changing tapes upon dimensional change of laminated products can be shortened by making a double-layered endless belt by bonding the adhesive sides with CG610RS).

• Wrapping and insulation connection of high temp. and high voltage cables

• Wrapping web rollers to reduce friction

• Covering web former edges to minimize friction during folding

• Noise reduction of parts where surfaces rub together

• Increasing wear life of parts
