PTFE Film and Sheet

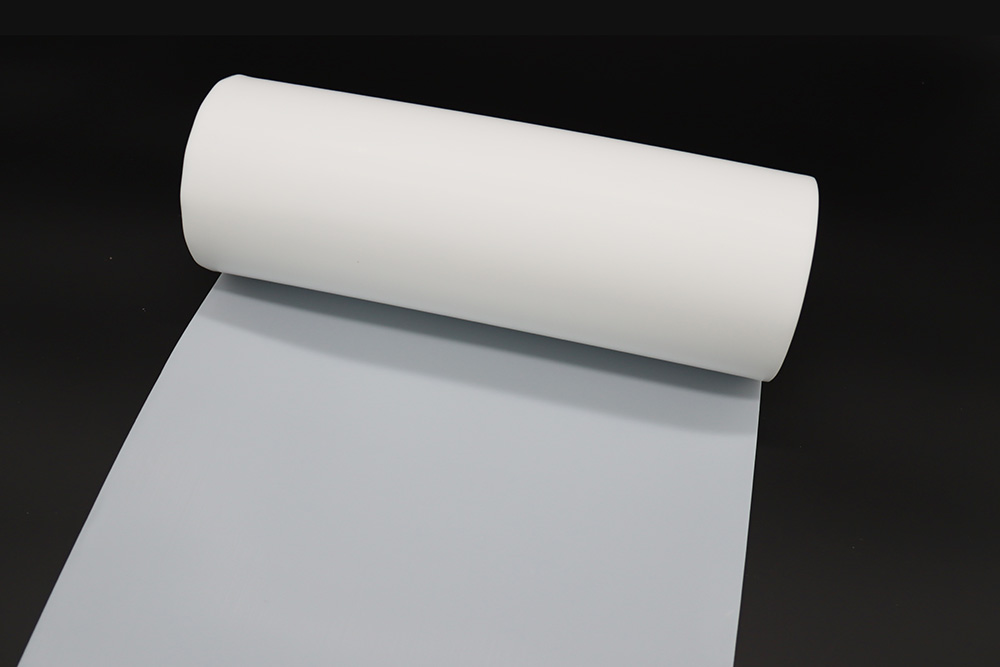

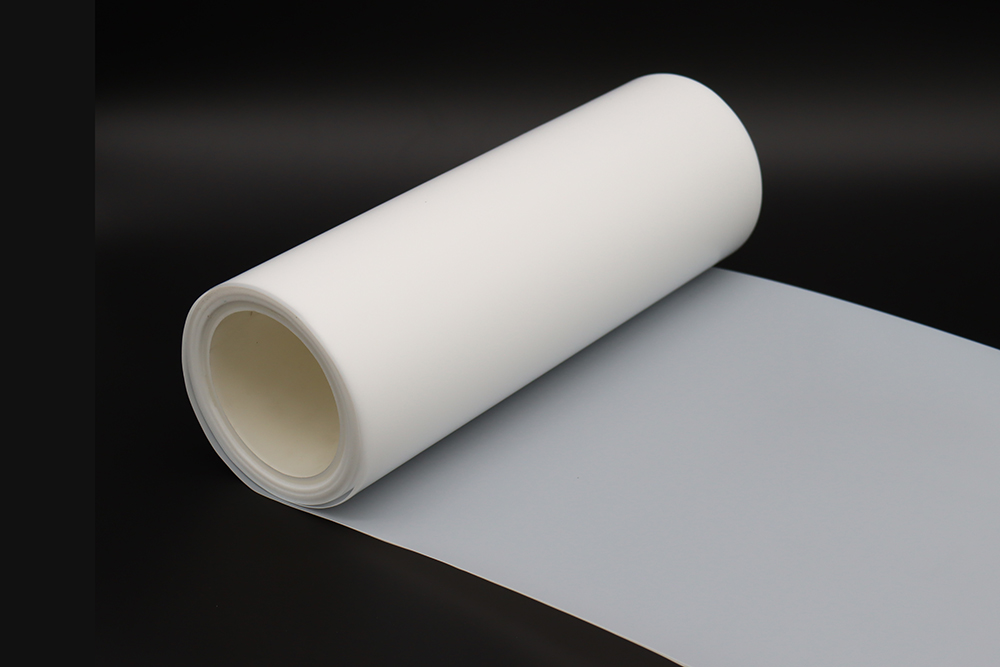

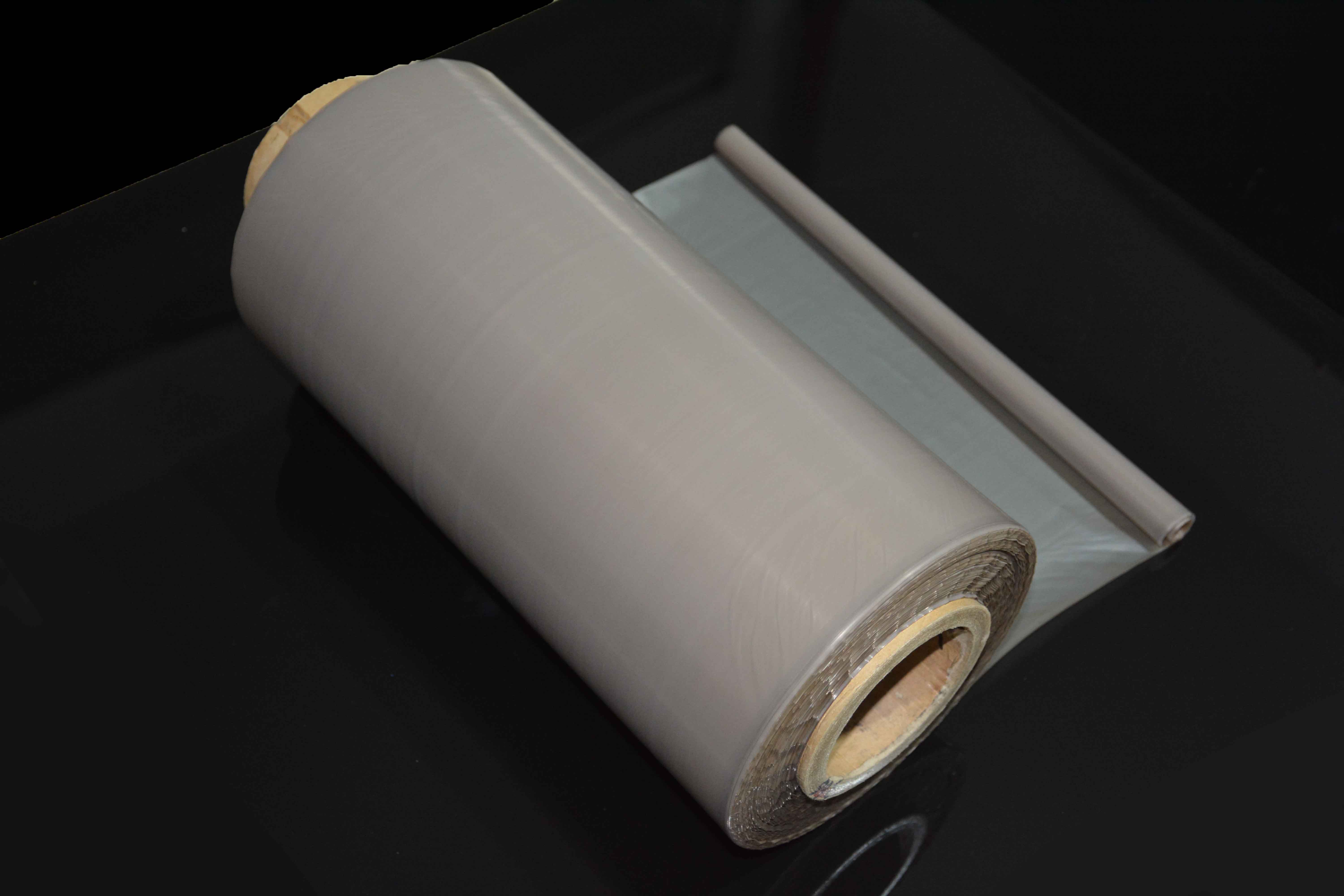

White Skived PTFE Film

PTFE Film and PTFE Sheets are skived from pure virgin polytetrafluoroethylene (PTFE) resin . PTFE Film and PTFE Sheets provide a low-friction, non-stick surface suitable for use in high-temperature and high-dielectric applications. PTFE Film and PTFE Sheets are available in roll form or cut to size sheets and can be supplied with a self-adhesive silicone adhesive (pressure-sensitive tape). And the film can be processed into a full-oriented type or a semi-oriented type.

  • FEATURES
  • MAIN TECHNICAL PARAMETER

Skived PTFE film: 0.02mm-1mm

Width: 300mm, 600mm

Weight per roll: 300mm about 22kgs

                             600mm about 46kgs


Key Characteristics

  • Outstanding anti-stick release properties

  • Good temperature resistance, continuous working temperature -70-260 °C

  • Chemical resistance and inertness

  • Dielectric insulation properties

  • Non-flammable

  • Anti-aging


Applications

  • High temperature, acid and alkali resistant chemical wrapping

  • Mechanical surface protection

  • Plastic mold release

  • High temperature and high voltage cable insulation connection and wrapping

  • Electronic material die cutting

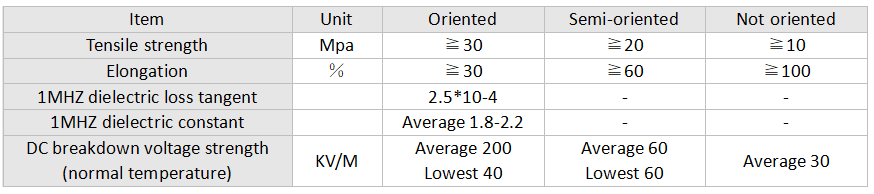

Technical Parameters
